Miniature Rustproof High lead & High Speed Precision Ball Screw

KGG precision ground ball screws e etsoa ka mokhoa oa ho sila oa screw spindle. Basebetsi ba libolo tsa fatše tse nepahetseng ba fana ka boemo bo phahameng ba boemo bo nepahetseng le ho pheta-pheta, motsamao o bonolo le bophelo bo bolelele ba ts'ebeletso. Li-screws tsena tsa bolo tse sebetsang hantle haholo ke tharollo e phethahetseng bakeng sa lits'ebetso tse fapaneng.

Re romelle lengolo-tsoibila

Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Selelekela sa Precision Ball Screw Le Lethathamo la Khetho

KGG e fana ka li-Screws tsa Precision Ball tse hlophisitsoeng ka moralo o feto-fetohang le nako e khuts'oane ea ho fana. Bareki ba ka khetha lihlahisoa tse loketseng ho ea ka boemo ba bona ba sebele.

Tafole ea Shaft dia. le Motsoako oa Lead bakeng sa Precision Ball Screw

Moetapele (mm)

0.5

1.5

2.5

Shaft dia (mm)

●

Precision Ball Screw Details

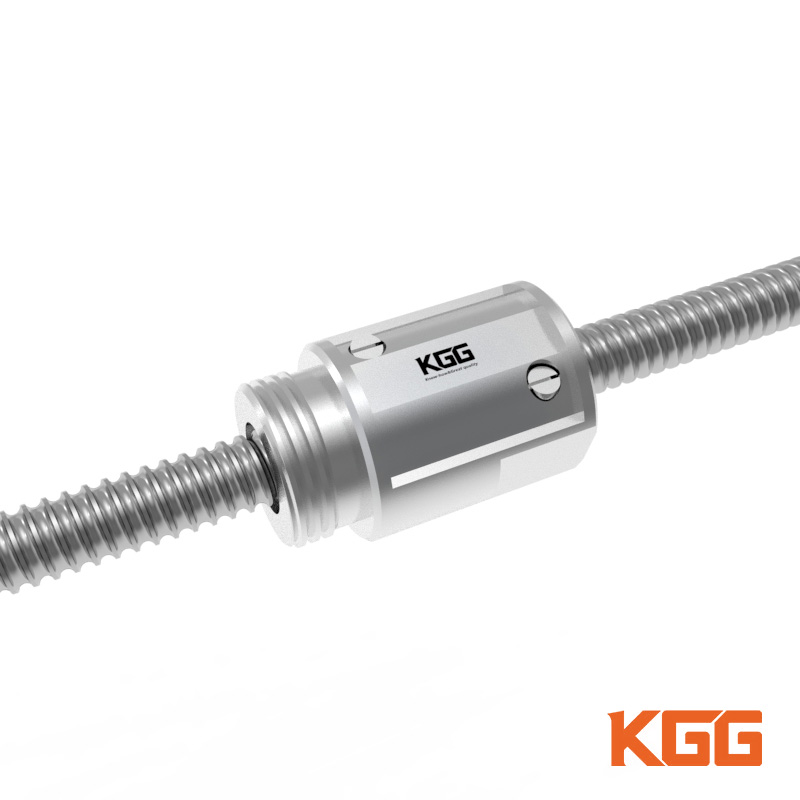

Nate e le 'Ngoe ea Moroalo o Phahameng ka M-thread GLM Precision Ball Screw

KGG Miniature e sebetsang hantle haholo Precision rolled Ball Screw ballscrew Letoto le phahameng la Moroalo o Phahameng Lebelo le le leng le nang le Khoele ea M-GLM Precision Ball Screw Linear Actuator Factory Outlet

Mofuta oa Cylindrical o nang le khoele ea M qetellong ea Nut. Nut e lokela ho kenngoa ho sebelisoa M-thread. E loketse ho kenngoa ka silinda.

Sehlopha sa ho nepahala ha lihlopha tsa GLM li thehiloe ho C3 le C5 (JIS B 1192-3). Ho ea ka kereiti ea ho nepahala, Axial play 0 (Preload: C3) le 0.005mm kapa ka tlase (C5) e teng.

GLM series of screw shaft screw material S55C (induction harding), nut material SCM415H (carburizing and harding), bokaholimo ba karolo ea "ball screw" ke HRC58 kapa ho feta.

Lethathamo la lihlooho

PDF Catalog

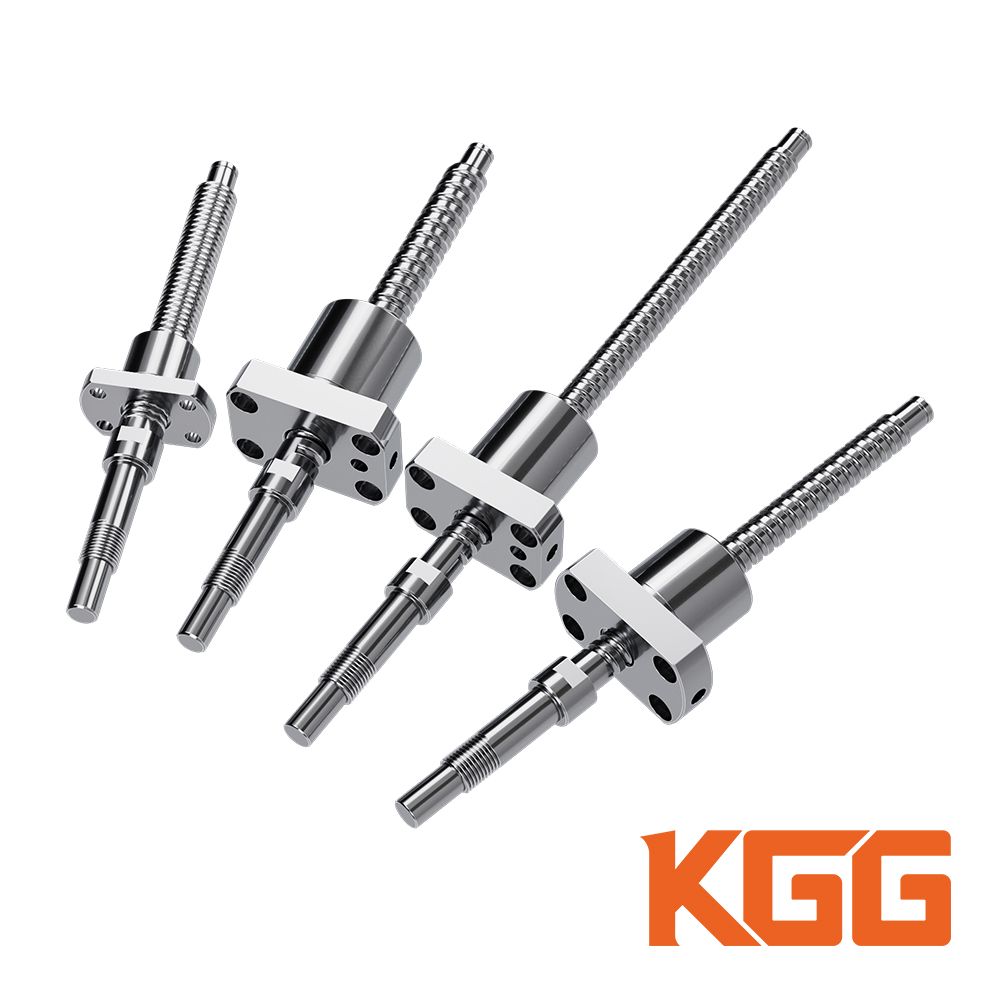

Phahamiso e Phahameng Feed Miniature Ground GNK Precision Ball Screw

Li-screw tsa GNK tse nyane tsa bolo ea fatše li sebelisoa ho fetolela motsamao oa rotary hore e be motsamao oa mola. E sebelisa li-screws tsa tšepe tse fatše bakeng sa matla le ho thatafala, 'me bokaholimo ba likhoele tse phuthoang bo matla ebile bo boreleli ho feta likhoele tse sehiloeng. Nate e tsamaea ka potoloho e tsamaisang bolo bakeng sa motsamao o boreleli, o fokolang o fokolang 'me o na le sebaka sa flange bakeng sa likhetho tse fapaneng tsa ho hloella.

GNK Series Miniature Grinding Ball Screws e fumaneha ka lihlopha tse peli tse tloaelehileng tsa ho nepahala, JISC3/C5. Axial clearance e fumaneha ka 0mm (pre-pressurized: C3) le 0.005m kapa ka tlase (C5) ho itšetlehile ka sehlopha sa ho nepahala.

GNK Series Miniature Ground Ball Screws e na le screw shaft e nang le S55C (high-frequency quenching) le nate e nang le SCM415H (carburizing quenching), 'me boima ba bokaholimo ba karolo ea "ball screw" ke HRC58 kapa ho feta.

Lethathamo la lihlooho

PDF Catalog

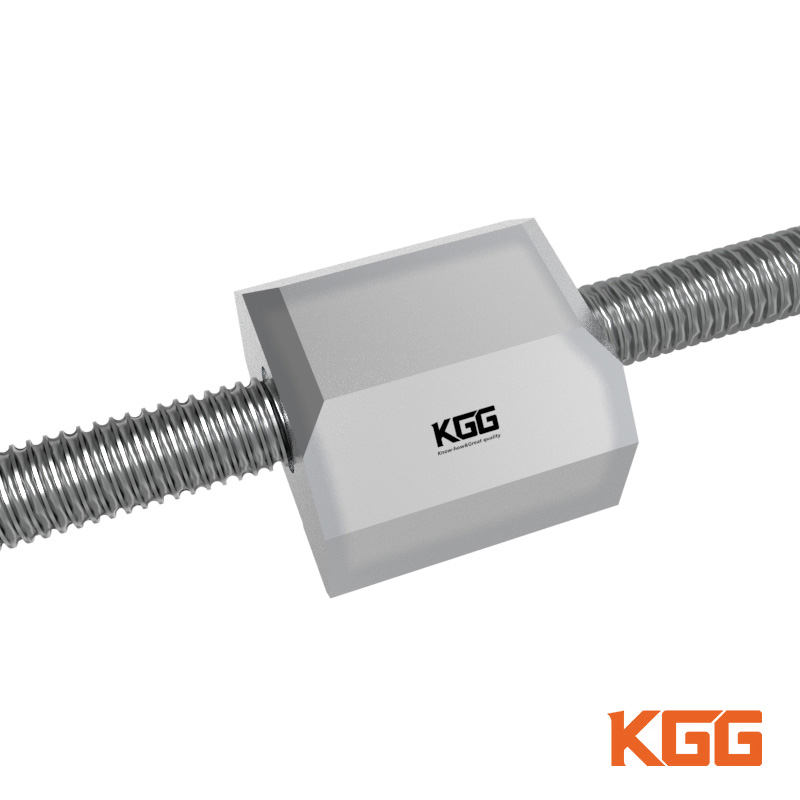

Miniature Square Single Nut High Speed FXM Precision Ball Screw

KGG Miniature e sebetsang hantle haholo Precision rolled Ball Screw ballscrew lead lead High Load High Speed Square Single Nut FXM Precision Ball Screw Linear Actuator Factory Outlet

Nut e sekwere e phethiloe ka sefahleho se seholo se ntseng se phahama se bapileng le setsi sa Nut. Nut ka boeona e na le mosebetsi oa Housing. Sena se lumella moralo o kopaneng haholoanyane ha o bapisoa le mofuta oa Flange.

Letoto la rona la FXM le na le mefuta e 'meli ea limaraka tsa ho nepahala, JIS C3/C5. Axial clearance e fumaneha ka 0mm (preload: C3) le 0.005mm kapa ka tlase (C5) ho itšetlehile ka sehlopha sa ho nepahala.

FXMletoto la screw shaft screw material S55C (induction harding), nut material SCM415H (carburizing and harding), bokaholimo ba karolo ea "ball screw" ke HRC58 kapa ho feta.

Lethathamo la lihlooho

PDF Catalog

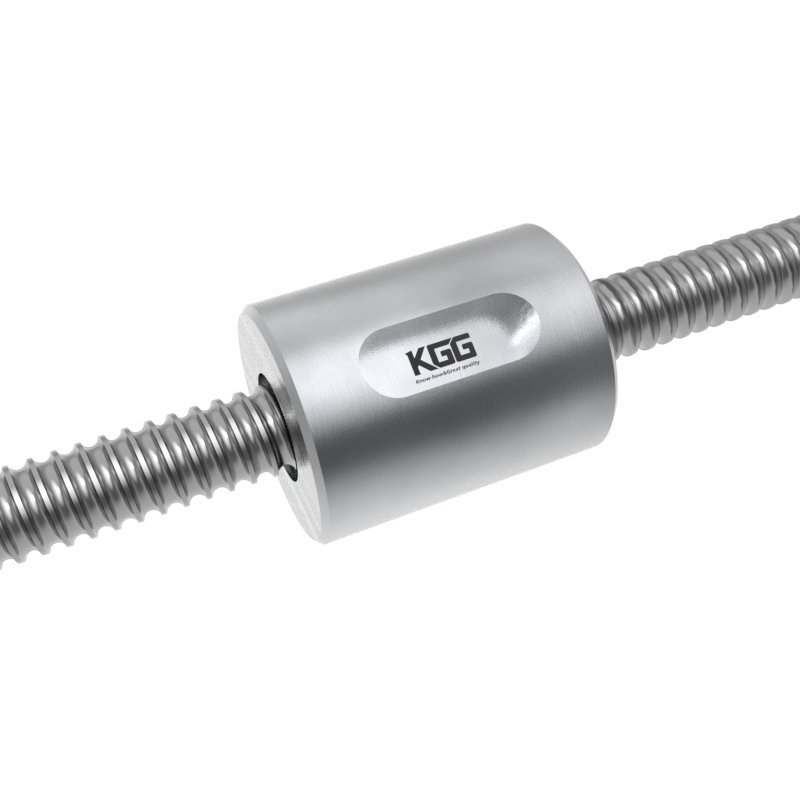

Mofuta o Monyane oa Rustproof Sleeve TXM Single Nut Precision Ball Screw

KGG TXM Industrial Miniature Anti-corrosion Sleeve Type Ball Screws (2)

Ke cylindrical single nut e kopaneng. Nate e lokela ho hlongoa ka ho tola holim'a senotlolo holim'a linate tse ka ntle le bokaholimo ba linate.

Ho nepahala ha sehlopha sa letoto la TXM ho thehiloe ho C3 le C5 (JIS B 1192-3). Ho ea ka kereiti ea ho nepahala, Axial play 0 (Preload: C3) le 0.005mm kapa ka tlase (C5) e teng.

TXM series of screw shaft screw material S55C (induction harding), nut material SCM415H (carburizing and harding), bokaholimo ba karolo ea "ball screw" ke HRC58 kapa ho feta.

Lethathamo la lihlooho

PDF Catalog

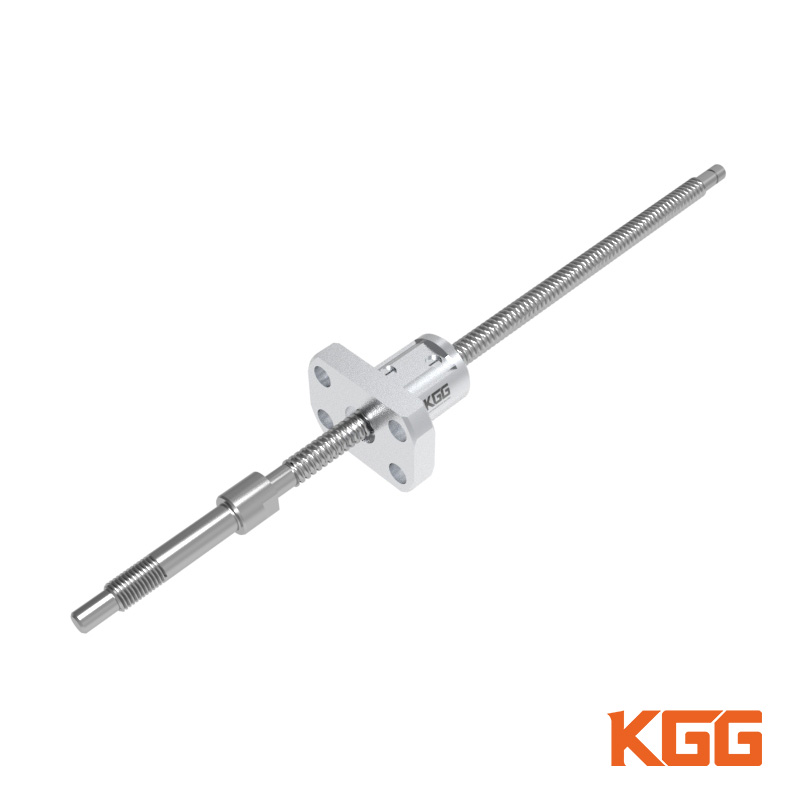

Mojaro o phahameng o Monyane o Phahameng o Kenyellelitsoeng GG Precision Ball Screw

KGG GG Series China Ball Screw Factory Precision Miniature Ball Screw(4)

Moroalo o Monyane o Phahameng o Phahameng oa GG Precision Ball Screw o nang le koranta ea ho qetela e Kopantsoeng

Sehlopha sa ho nepahala ha lihlopha tsa GG li thehiloe ho C3 le C5 (JIS B 1192-3). Ho ea ka kereiti ea ho nepahala, Axial play 0 (Preload: C3) le 0.005mm kapa ka tlase (C5) e teng.

GG series of screw shaft screw material S55C (induction harding), nut material SCM415H (carburizing and harding), bokaholimo ba karolo ea "ball screw" ke HRC58 kapa ho feta.

Lethathamo la lihlooho

PDF Catalog

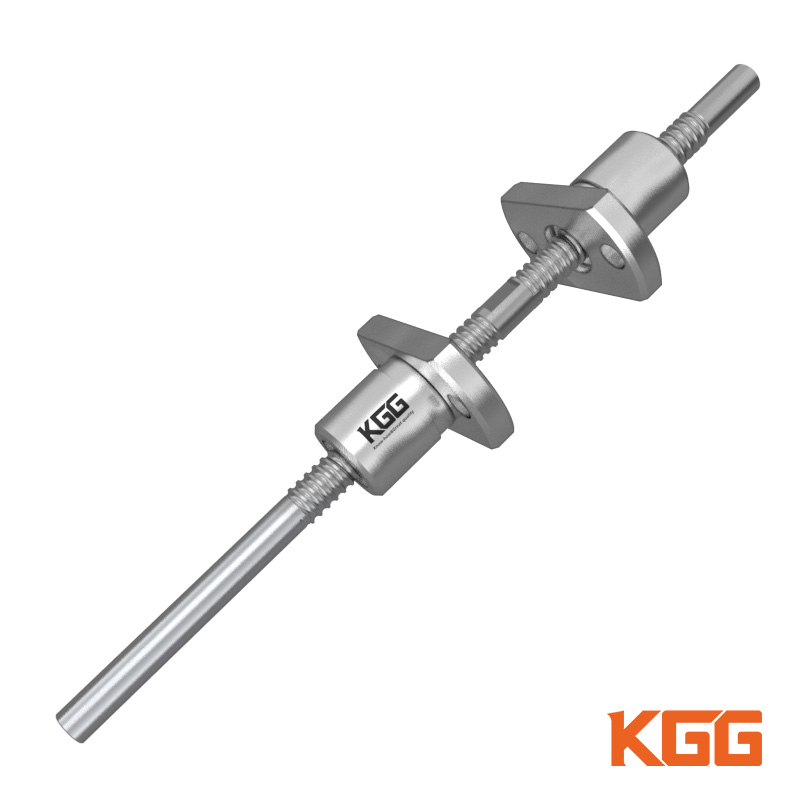

Miniature Bi-directional High Load Rustproof SXM Precision Ball Screw

KGG SXM China Factory Precision Bidirectional Ball Screw with Double Nuts(1)

Kaha ho na le khoele e ka lehlakoreng le letona le khoele e lehlakoreng le letšehali holim'a shaft, e na le ts'ebetso ea mahlakoreng a mabeli.

Letoto la SXM le na le mefuta e 'meli ea limaraka tsa ho nepahala, JIS C3/C5. Axial clearance e fumaneha ka 0mm (preload: C3) le 0.005mm kapa ka tlase (C5) ho itšetlehile ka sehlopha sa ho nepahala.

SXM series of screw shaft screw material S55C (induction harding), nut material SCM415H (carburizing and harding), bokaholimo ba karolo ea "ball screw" ke HRC58 kapa ho feta.

Lethathamo la lihlooho

PDF Catalog

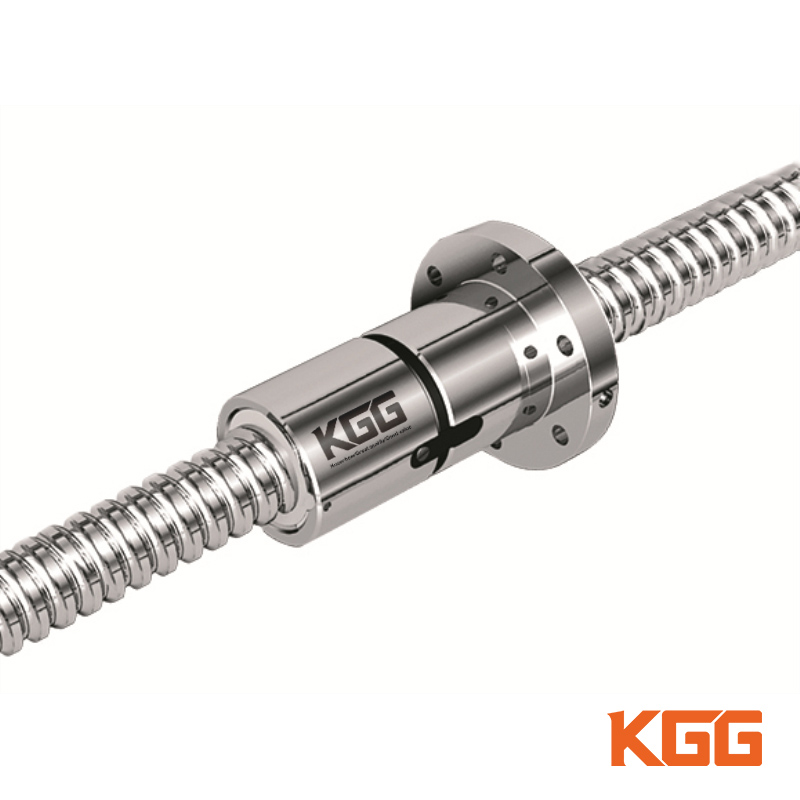

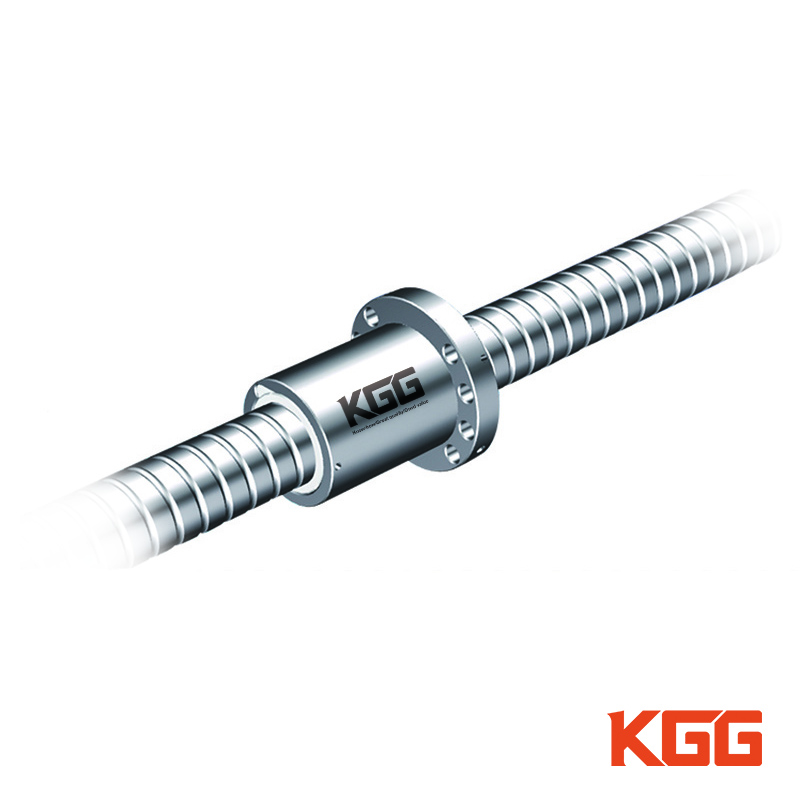

High Lead Compact High Speed High Speed Rustproof DKF/DKFZD Precision Ball Screws

KGG DKF compact Rustproof High Speed Precision ballscrews e phahameng-e phahameng Moroalo o phahameng ka ho nepahala Moeta-pele o phahameng o pheta-pheta Ball Screw Linear Actuator mofani oa thepa

KGG e na le mefuta e 'meli ea Compact High Speed Precision Ball Screws: DKF & DKFZD

Lethathamo la lihlooho

Lebelo le Leholo le Leholo le Leholo le Leholo Leqhubu le Leholo le Rustproof DKF Precision Ball Screws

KGG DKFZD compact high speed ball screw compact Rustproof Precision ballscrews e phahameng-e phahameng Moroalo o phahameng ho nepahala Moeta-pele o phahameng o pheta-pheta Ball Screw Linear Actuator factory outlet

KGG e fana ka li-screws tsa bolo ea lead e kholo.

Lethathamo la lihlooho

Mechini ea Motlakase ea Ente ea Motlakase ea Motlakase e Phahameng ka ho Fetisisa CTF/CMF Ball Screws

E sebelisoa ka ho khetheha bakeng sa mochini oa ho bopa ente ea motlakase, mojaro o phahameng, ts'ebetso ea lebelo le holimo le bophelo bo bolelele

Lethathamo la lihlooho

Moroalo o Moholo o Phahameng o etella pele JF/JFZD Precision Ball Screws

KGG JFZD mofuta o moholo oa moroalo o boima Sekurufu sa bolo e kholo.

Kopo: Mechini e meholo le e boima ea CNC, mechini ea boring ea CNC, metjhini ea ho sila ea CNC, lisebelisoa tse kholo tsa tšepe tse qhibilihisang, lijeke le metjhini e ohlang le lisebelisoa tse ling tsa mochini.

Lethathamo la lihlooho

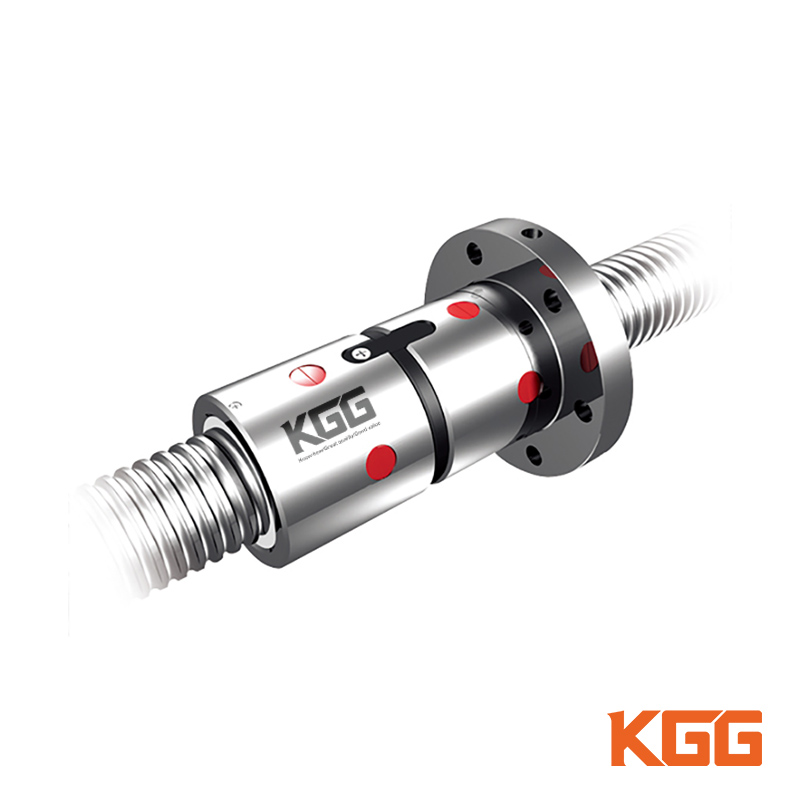

Phahamiso e phahameng ea ka hare ea potoloho e Floating Rustproof FF/FFZ Ball Screw

KGG FFZD mofuta oa potoloho ea ka hare, e kopantseng spacer preload nut bophelo bo bolelele ba tšebeletso High Speed Precision ballscrews High Load High Lead Ball Screw factory

Ts'ebetso e phahameng ea phetisetso le ho nepahala ha maemo, bophelo bo bolelele ba ts'ebeletso

Lethathamo la lihlooho

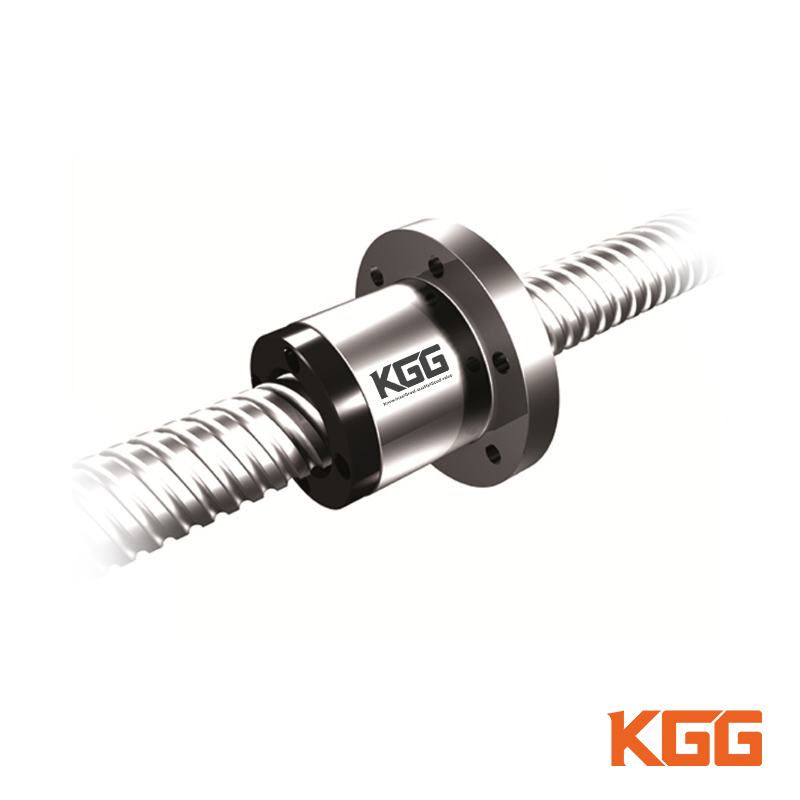

Tse ling tse Phahameng ka ho Fetisisa Ho nepahala ho Potoloha Tsela ea Rustproof Ball Screw

KGG DGF ka hare cycle end cap ball screw ballscrews China fektheri linear tshisinyo

KGG e na le likurufu tse 5 tsa bolo tse nang le mekhoa e meng ea ho potoloha: JF miniature ball screw, CMFZD external circulation cannula embedded gasket preload type, CTF external circulation cannula protruding type, DGF le DGZ internal circulation end caps type.

Lethathamo la lihlooho

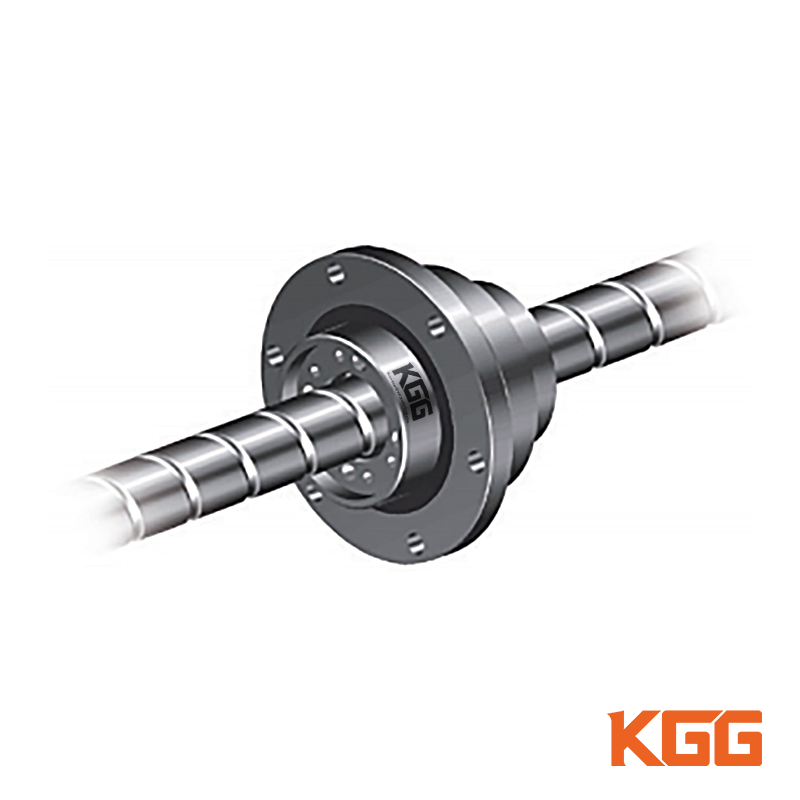

Linate Tse Phahamisang Pele tse Potolohang Precision Light Load Rustproof Ball Screws

Setsi sa motsoako oa linate tse potolohang ke mokhoa oa phetisetso o fetolang motsamao oa rotary oa nate ea bolo hore e be motsamao oa linear oa nate ka boeona (kapa sekoti sa bolo). Ke sehlahisoa sa katoloso ea "ball screw pair", 'me likarolo tsa eona tsa mantlha li entsoe ka "ball screw pair", "rolling bearing pair", setulo sa linate, sesebelisoa sa ho lokisa pele ho tiisa (lock), sesebelisoa se thibelang lerole le potoloho ea oli ea lubricating.

Lethathamo la lihlooho

Kopo:

Liindasteri tsa semi-conductor, Liroboto, Mechini ea Lehong, Mechini ea ho itšeha ka Laser, Lisebelisoa tsa ho tsamaisa.

Likaroloana:

1. Boemo bo tiileng le bo phahameng:

Ke moralo o kopaneng o sebelisang linate le ts'ehetso ea ts'ehetso e le karolo ea bohlokoa. 45-degree steel ball contact angle e etsa hore ho be le mojaro o betere oa axial. Zero backlash le ho satalla ho phahameng ho fana ka boemo bo phahameng.

2. Ho kenya habonolo:

E kenngoa feela ka ho lokisa linate holim'a ntlo ka li-bolts.

3. Phepelo e potlakileng:

Ha ho na phello ea inertial e hlahisoang ke yuniti ea bohlokoa e potolohang le shaft e tsitsitseng. E ka khetha matla a manyane ho fihlela tlhokeho ea phepelo e potlakileng.

4. Ho satalla:

E-ba le tšepo e phahameng le ho tiea ha motsotsoana, hobane yuniti ea bohlokoa e na le mohaho oa ho kopana le angular. Ha ho na backlash ha o ntse o bilika.

5. Ho khutsa:

Moralo o khethehileng oa cap cap o lumella libolo tsa tšepe ho potoloha ka har'a linate. Lerata le hlahisoang ke ts'ebetso ea lebelo le phahameng le tlase ho feta sekoti se tloaelehileng sa bolo.

Re na le mefuta e 'meli ea mojaro o bobebe le linate tse potolohang mojaro o boima: XDK & XJD series.
